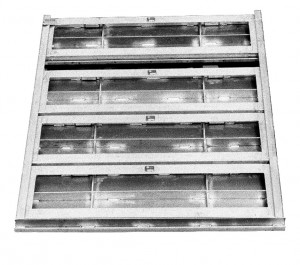

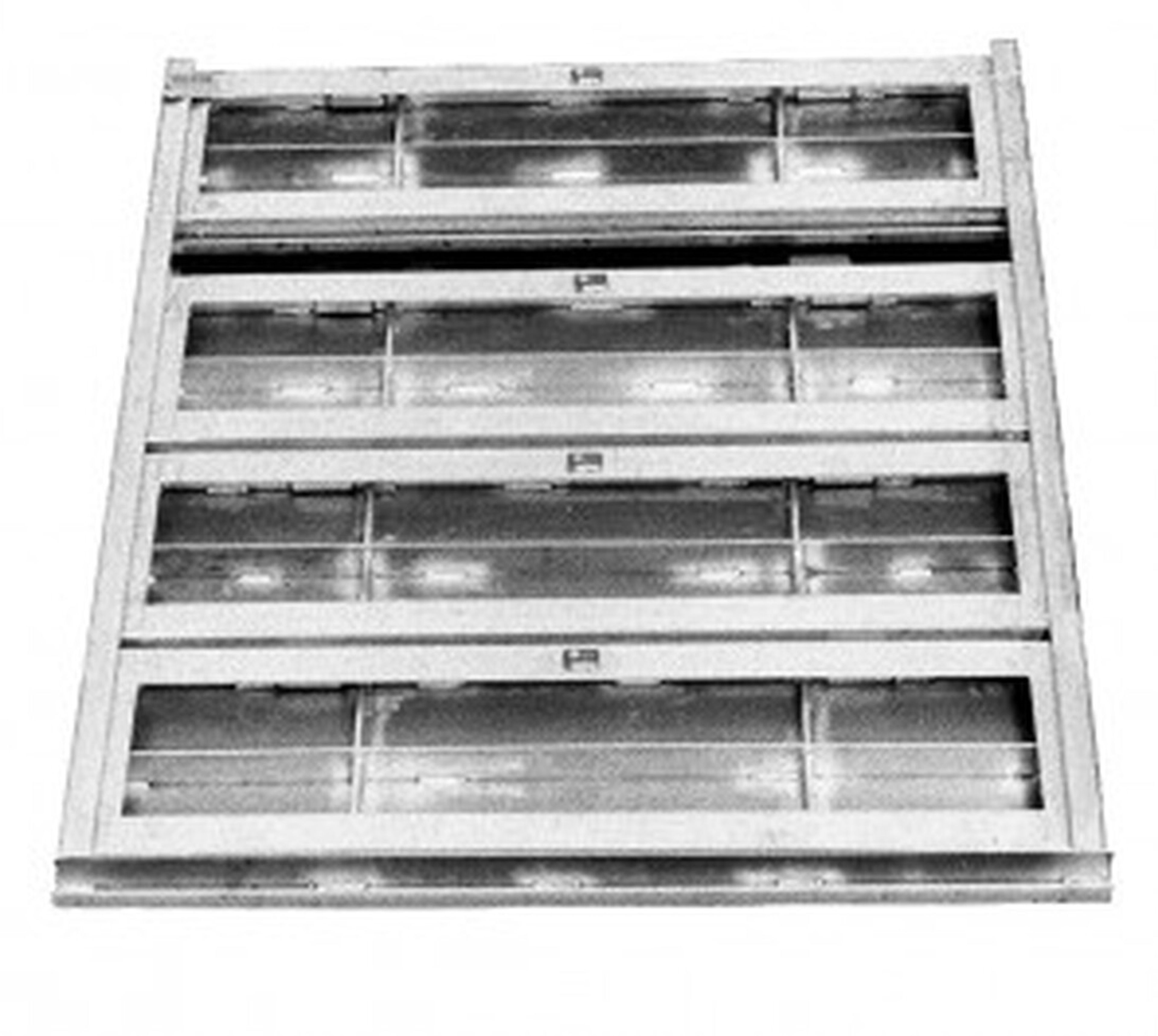

Stop Logs image gallery

Specifications

  • Size Range (Stainless Steel)

    Frame Width: 6" - 168", Frame Height: 6" - 168", Log Height: 6", 12", 18" or 24" tall, Log Width: 6” - 168”

  • Size Range (Aluminum)

    Frame Width: 6" - 72", Frame Height: 6" - 72", Log Height: 6", 12", 18" or 24" tall, Log Width: 6” - 72”

  • Frame, Log, & Invert Materials

    Stainless Steel ASTM A-240, A-276 Type 304 or 316

  • Mounting

    Wall Mount, Embedded Channel Mount, Surface Channel Mount

  • Guide Material

    Ultra High Molecular Weight Polyethylne (UHMWPE) ASTM D-4020

  • Actuation

    Mechanical Stop Log Lifter and Manual Lifting Pole

  • Sealing Material

    Neoprene ASTM D-2000

  • Design/Test Standard

    NSF 61, NSF 372

  • Assembly and Mounting Hardware

    Stainless Steel ASTM F-593 & F-594 Type 304 or 316

Features & Benefits

Waterman Stop Logs are a simple and economical way to stop flows or regulate levels in channels and canals.

  • Open-channel flow or level control
  • Resilient seals for low leakage requirements
  • Aluminum or stainless steel construction
  • Custom designed and sized to meet application needs
