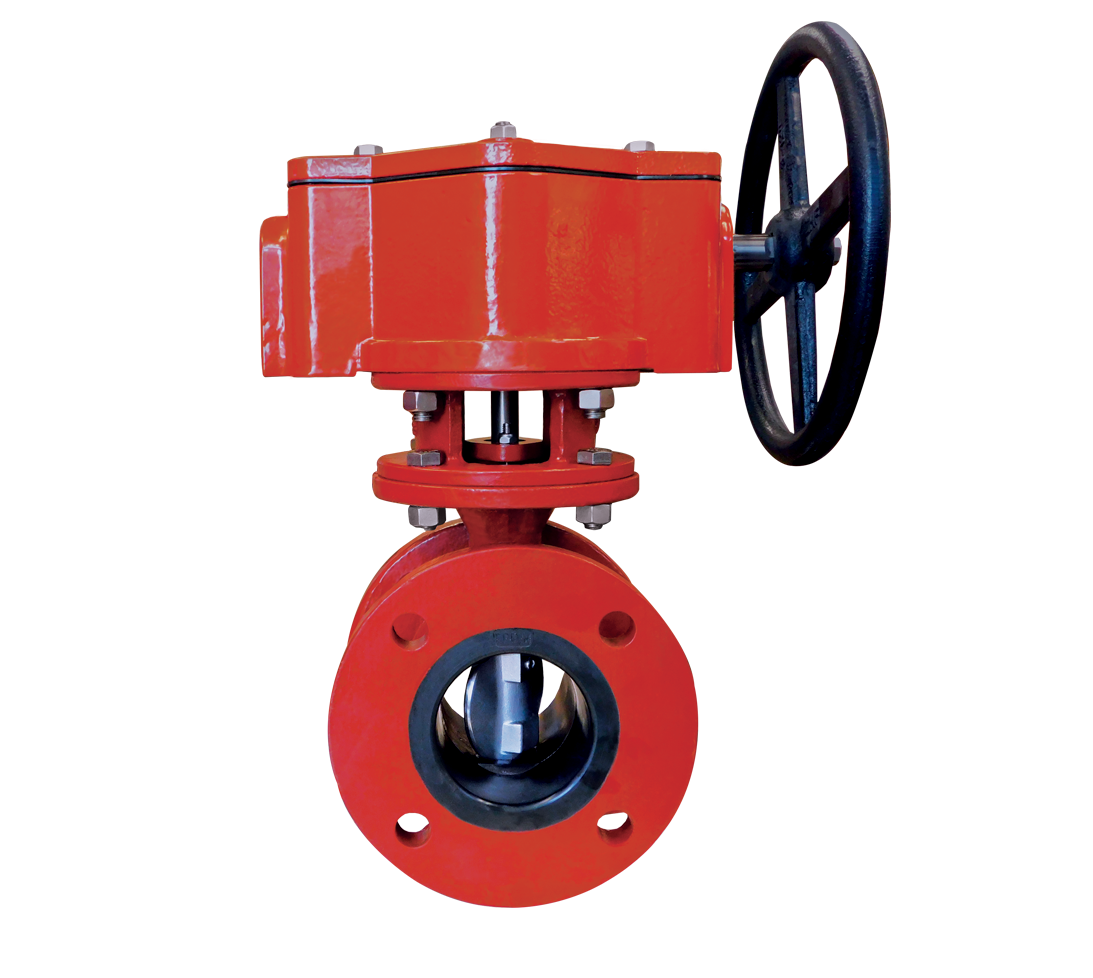

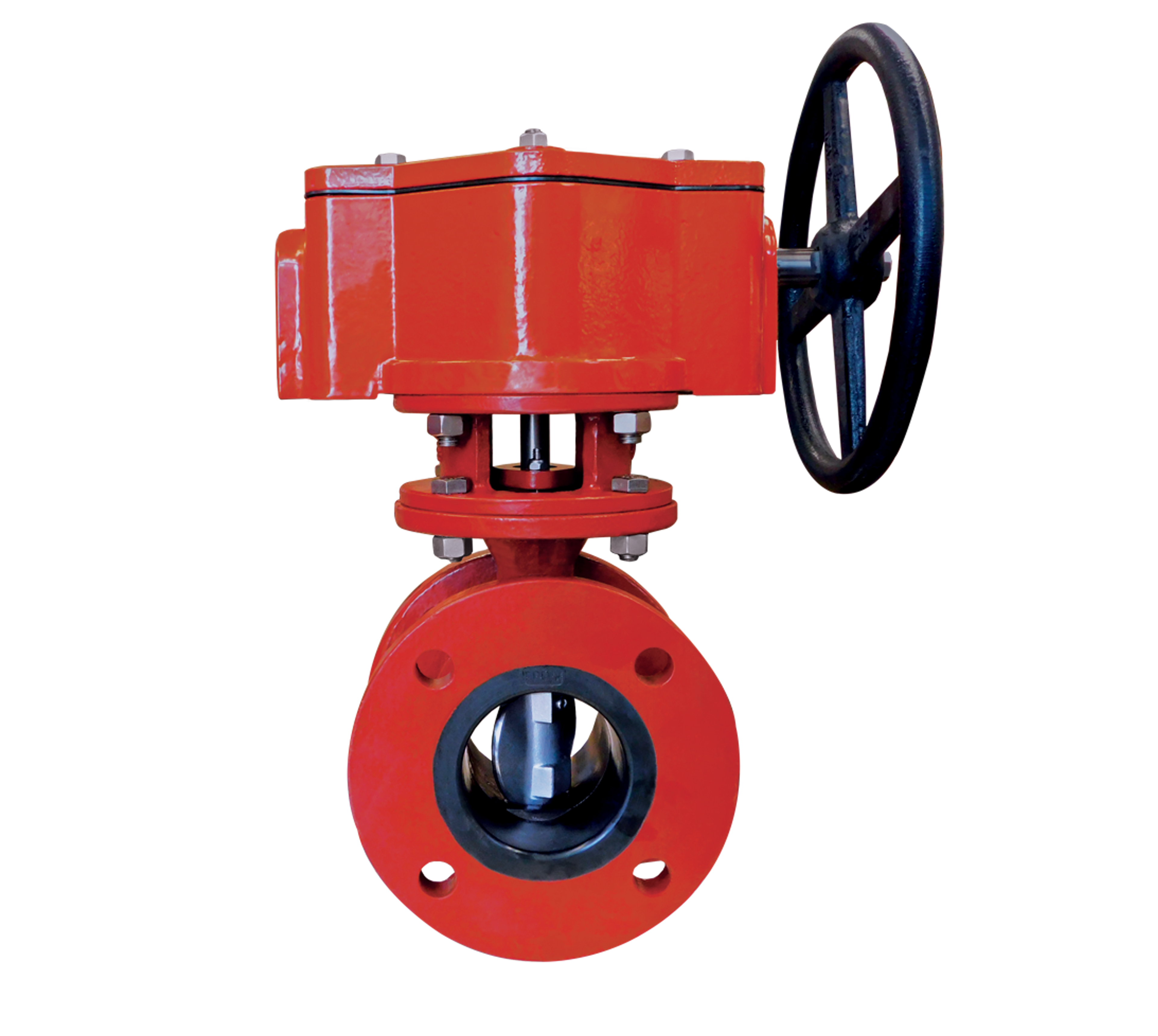

Specifications

  • Size Range:
    3"-36"
  • Operating Pressure:
    150B – 150 PSI; 250B – 250 PSI
  • Disc Seating Edge:
    ASTM A276 T316SS
  • Seat Materials:
    EPDM
  • Design/Test Standard:
    AWWA C504
  • Certifications:
    NSF 61, NSF 372
  • Exterior Fasteners:
    T316SS
  • Actuation:
    Traveling Nut, Worm Gear, Electric, Hydraulic, Pneumatic, Lever
  • Temperature Range:
    0°-250°F
  • Body Materials:
    ASTM A536 65-45-12 Ductile Iron
  • Disc Materials:
    ASTM A536 65-45-12 Ductile Iron (4"-36"), T316SS (3")
  • Shaft Materials:
    150B - ASTM A276 T316, 250B - ASTM A564 T630 (17-4)
  • Body Style:
    FLG 3"-36" MJ 4"-36"
  • Flange Drilling:
    FLG – ANSI B16.1 Class 125 & 250, MJ – ANSI/AWWA C111/A21.11

Features & Benefits

  1. Butterfly valves come standard with an integrally cast actuator mounting pad; machined and drilled in accordance with ISO-5211 and MSS SP-101.
  2. Our butterfly valves utilize stainless steel shafts to resist corrosion and ensure long valve, bearing, and packing life. 316SS is the standard shaft material for CL 150B, while 630SS (17-4) stainless steel is utilized for CL 250B.
  3. Our fully rubber-lined bodies for 3”-24” valves eliminates the need for inner body coating and effectively prevent abrasion from particulate in the media.
  4. Our disc-to-shaft pinning connections are built in accordance with AWWA C504. We utilize a 630SS (17-4) pin that is held in place with stainless steel nuts, creating a strong and reliable connection. This ensures that our customers will get many years of dependable, backlash-free service from their valve.
  5. PTFE-lined fiberglass bearings are designed to provide low friction and long life, reducing the required maintenance and requiring no lubrication.
